Control Charts, Revolutionizing Quality Control Since the 1920s

Control charts serve as essential graphical plots used in statistical process control to determine whether a manufacturing or business process operates in a state of statistical control. Formulating the basis of modern quality management, these tools distinguish common-cause variation from special-cause variation over time.

The methodology was pioneered by Walter A. Shewhart while working at Bell Labs during the 1920s. Engineers at the company sought to improve telephony transmission reliability by reducing the frequency of equipment failures and underground repairs.

Get the Latest Sports News from Seymour's Bird

Receive the latest updates on football, basketball,and technology news directly in your inbox. It's free!

Subscribe

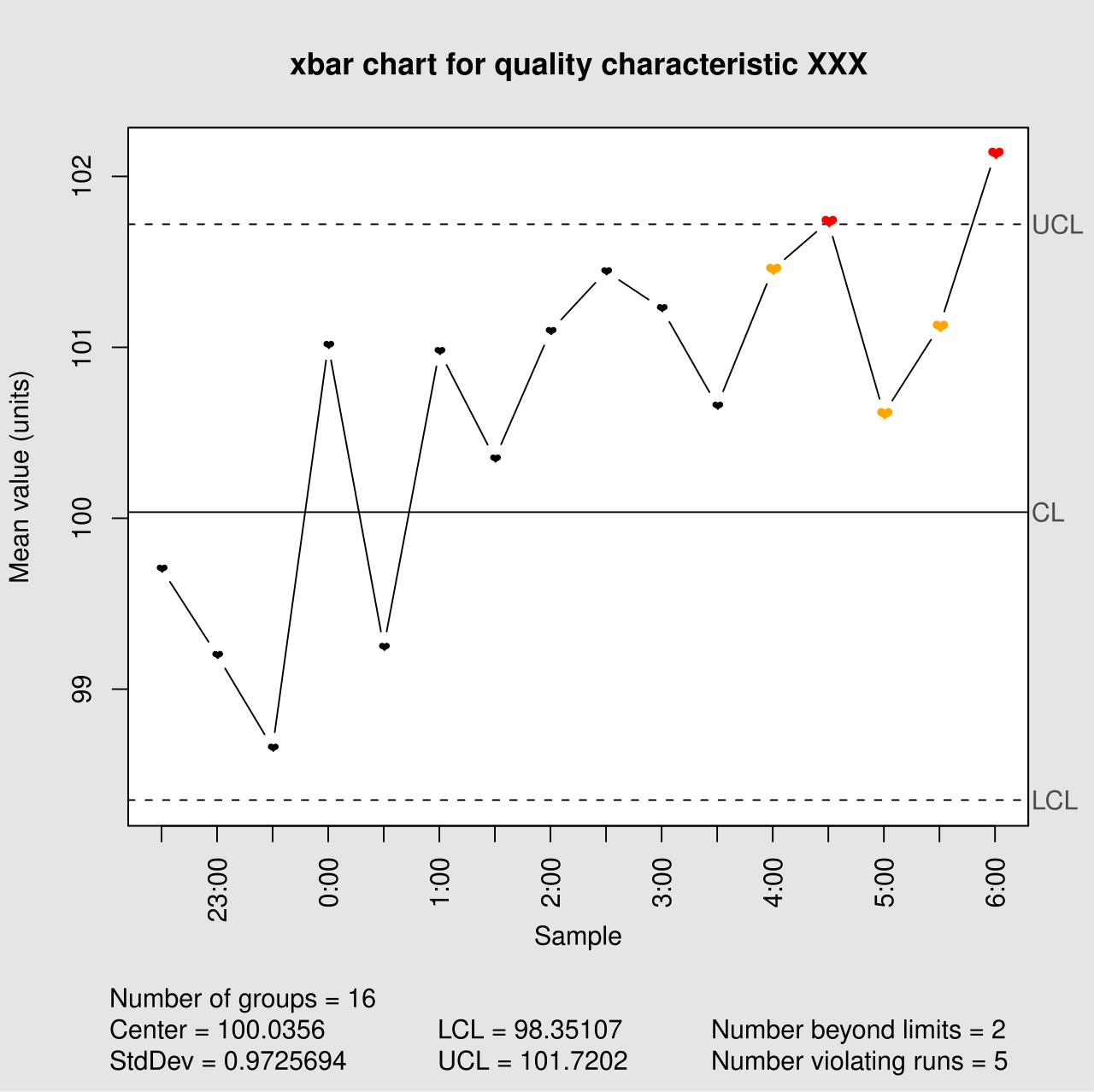

By plotting process statistics alongside a center line and upper and lower control limits, operators can easily identify non-random patterns or points outside expected boundaries. When a process remains stable, these charts provide reliable predictions of future performance.

Over subsequent decades, statistical experts like W. Edwards Deming championed Shewhart's innovations globally, embedding control charts deeply into manufacturing industries across Japan and the United States.

Understanding Control Chart Mechanics and Limits

Control chart limits provide vital information regarding process behavior without relying on subjective engineering tolerances. When processes operate within control limits, approximately ninety-nine point seven percent of all data points fall naturally between them.

Any observations falling outside these calculated thresholds signal the presence of special-cause variation, requiring immediate investigation to prevent rising quality costs. Continuous monitoring helps organizations quickly detect shifts in process variability and operational stability.

Furthermore, the strategic use of warning limits and structured zones ensures early notification when production systems begin to drift. Instead of reacting impulsively to minor fluctuations, quality engineers can adjust sampling rates to verify true stability.

Ultimately, these analytical tools offer a rational and economical guide to minimizing financial loss and operational inefficiency across diverse industrial environments.
