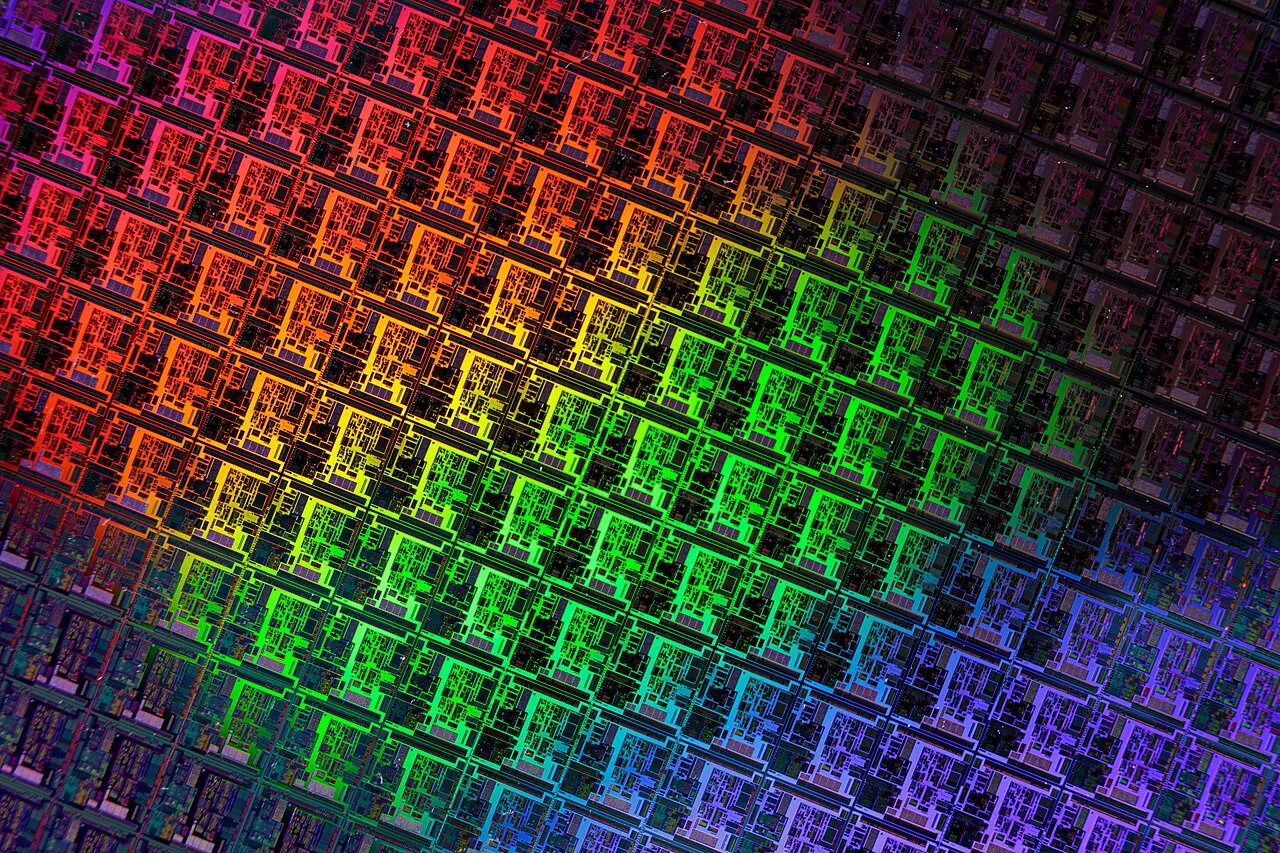

Photolithography stands as the undisputed backbone of modern electronics manufacturing, serving as the primary process through which integrated circuits and microprocessors are brought to life. By leveraging precisely controlled light sources, this advanced technique allows semiconductor fabricators to etch complex patterns down to a few nanometers onto silicon wafers with remarkable precision.
The process begins by coating a semiconductor substrate with a photosensitive layer known as a photoresist, which is subsequently exposed to intense light through a specialized photomask. Depending on whether a positive or negative photoresist is utilized, the exposed areas undergo chemical transformations that either dissolve or harden during development, preparing the wafer for subsequent etching and deposition steps.
Related Stories
Get the Latest Sports News from Seymour's Bird
Receive the latest updates on football, basketball,and technology news directly in your inbox. It's free!
SubscribeThe roots of the technique trace back to the early 19th century with photographic experiments, but its pivotal adaptation for electronics occurred in the 1950s. Pioneers such as Jay W. Lathrop and James R. Nall at the National Bureau of Standards successfully applied photoresist methods to miniaturize electronic components and protect transistor surfaces, coining the term photolithography.
Today, photolithography continues to evolve alongside global technological demands, incorporating automated robotic wafer track systems and cutting-edge extreme ultraviolet technology. Despite challenges regarding surface flatness and stringent cleanroom requirements, it remains an indispensable pillar of the global semiconductor industry.
