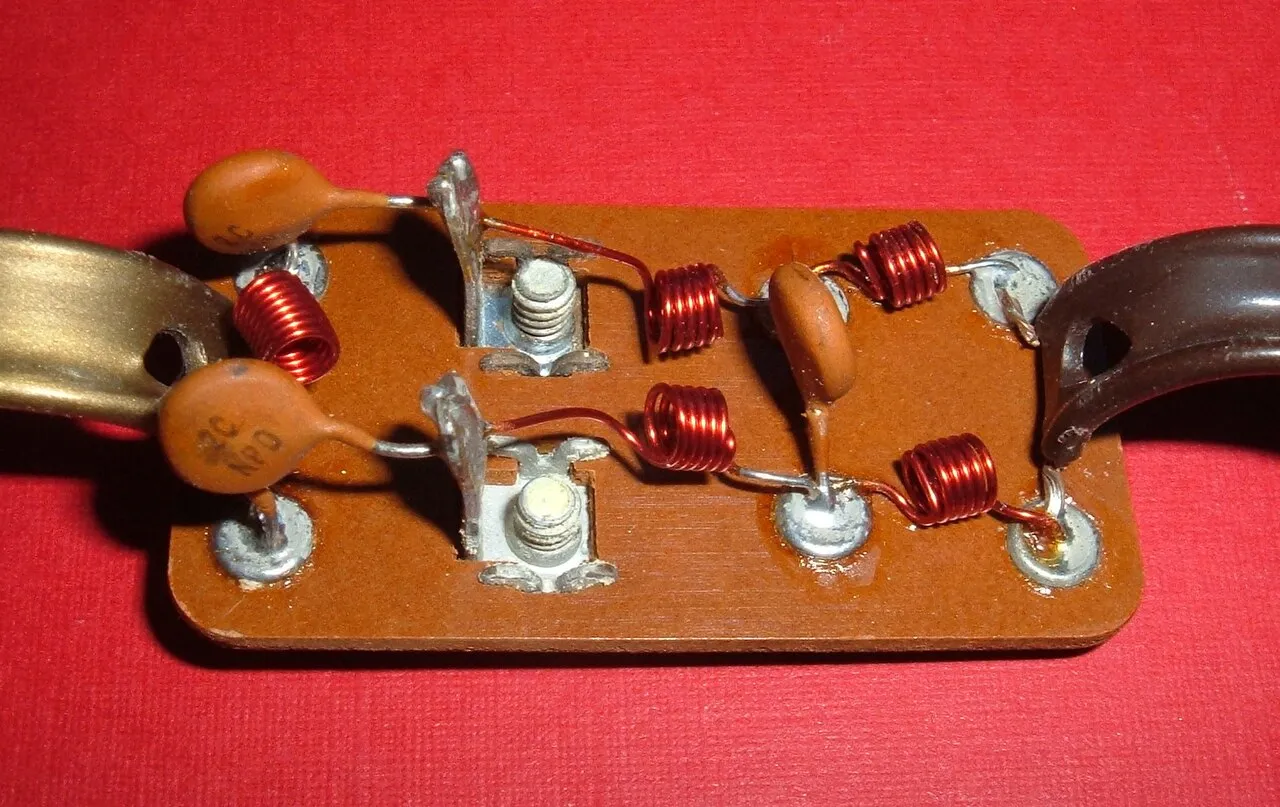

Diplexer technology serves as a critical backbone in modern telecommunications and broadcasting, allowing multiple signals across disjoint frequency bands to share a common communications channel without interference. By utilizing specialized lowpass and highpass filters, a diplexer successfully combines separate signals onto a single coaxial feedline or splits them efficiently at the receiving end.
Engineers and network operators rely heavily on these passive devices to streamline infrastructure, particularly in radio towers and residential setups where running multiple cables is impractical or cost-prohibitive. For instance, a single city radio tower might combine police and fire department radio frequencies onto one antenna feedline using a precisely calibrated diplexer unit.
Related Stories
Get the Latest Sports News from Seymour's Bird
Receive the latest updates on football, basketball,and technology news directly in your inbox. It's free!
SubscribeDespite their efficiency, diplexers come with certain operational limitations, such as insertion loss and isolation requirements. While standard diplexers offer around 30 decibels of isolation between ports, more demanding applications requiring simultaneous transmission and reception necessitate duplexers with much stricter isolation thresholds to prevent receiver overload.
The versatility of diplexers extends far beyond professional broadcast stations, finding common utility in residential satellite television and terrestrial antenna setups. Homeowners frequently use diplexers to merge satellite dish frequencies and local TV broadcast channels onto a single existing coaxial cable, bypassing the need for complex rewiring.
Industrial and Residential Applications of Diplexers
Industrial applications of diplexers range from medium wave broadcasting sites to multi-band amateur radio setups, where space constraints or economic factors dictate the use of shared feedlines. However, engineers must carefully consider frequency spacing, as transmitters operating too close together cannot be successfully combined by a standard diplexer.
In residential environments, the integration of direct broadcast satellite TV dishes and terrestrial TV antennas remains one of the most popular uses for diplexer hardware. Satellite feeds typically occupy higher frequency ranges while traditional local broadcast channels use lower frequencies, allowing both to coexist harmoniously on a single cable.
Modern home installations face additional complexities due to multi-channel receivers and single cable distribution technologies that demand high-quality cabling, such as RG-6 rather than older legacy cables, to minimize signal loss at elevated frequencies.
Ultimately, diplexers continue to evolve alongside modern broadcasting standards, proving that passive electronic components can deliver efficient, cost-effective solutions for complex frequency multiplexing challenges across diverse industries.
